PhaseCam Infrared
Patented, vibration-insensitive measurements at
NIR, SWIR, MWIR, and LWIR wavelengths.
High performance Twyman-Green laser interferometers offer accurate, repeatable measurement for testing optics at infrared wavelengths
PhaseCam Twyman-Green infrared interferometers accurately measure concave, convex and afocal infrared components, as well as infrared telescopes and lens systems. PhaseCam systems are ideally suited for measuring infrared optics over long paths, for remote mounting in measurement towers or pressure vessels, and for other challenging test setups.
PhaseCam NIR and SWIR Infrared Interferometers
Small and lightweight, PhaseCam NIR and SWIR systems incorporate patented Dynamic Interferometry® technology to acquire data thousands of times faster than a temporal phase shifting interferometer. Because acquisition time is so short, the systems can be used without vibration isolation in the most challenging environments.
PhaseCam NIR
Operating at 1.064 µm
PhaseCam NIR and SWIR Specs
PhaseCam SWIR
Operating at 1.55 μm
PhaseCam NIR and SWIR Infrared Interferometers
The PhaseCam Twyman-Green MWIR and LWIR interferometers accurately measure concave, convex and afocal components, as well as optical systems, at mid- and long-IR wavelengths. The optical systems enable measurement of both uncoated optics and high reflectors.
With a secondary output aperture on the side, we can provide an Off-Axis Parabolic Beam Expander, like the 150mm example shown, for either the PhaseCam MWIR or PhaseCam LWIR system.
PhaseCam MWIR with beam expander
Operating at 3.39 µm (other wavelengths available)
PhaseCam MWIR and LWIR Specs
This 2:14 minute introduction of the PhaseCam MWIR with its remarkable features helps you see how well thought-out this instrument is. It adds so much value over the lifetime of its use.
.png)

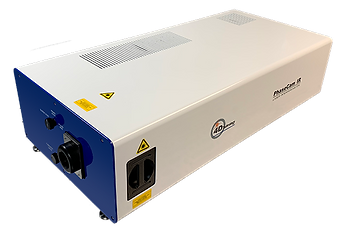

PhaseCam MWIR
Operating at 3.39 µm
(other wavelengths available)
PhaseCam MWIR Diverger Optics
Full range of diverger optics operating at 3.39 µm
(other wavelengths available)
Vibration insensitive
30 microsecond data acquisition time
Reflectivity adjustment
A built-in rotating polarizer helps you achieve maximum fringe contrast and highest-quality data for any sample, from reflectivity <1% up to 100%
Accessory optics
Numerous accessories and options, a fully developed product line.

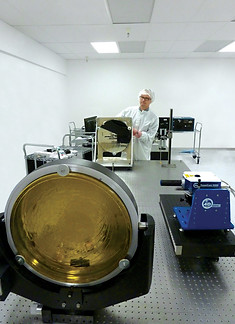

4D PhaseCam systems have been deployed for measuring in the most challenging applications: in environmental and vacuum chambers; for long path measurements, without isolation; for with computer-generated holograms for aspheric and freeform optics testing; and as precision alignment aids for complex infrared sensing systems, among many others.
All 4D systems are backed by world-class support every step of the way. Upgrades, accessories and ongoing service will help you get the most of your interferometer investment.
DATA
ANALYSIS
SOFTWARE
Introducing 4Sight Focus
The all-new 4Sight Focus analysis software—included with all 4D interferometers and optical profilers—provides blazing fast acquisition, rich visuals, and a wealth of analysis features.
-
Fast acquisition and analysis
-
Clean, configurable interface
-
Simple to learn
-
Deep analysis capabilities
-
Easy data output
-
Smart integration and automation.
