NanoCam HD

non-contact optical profiler

for vibration-immune roughness measurement

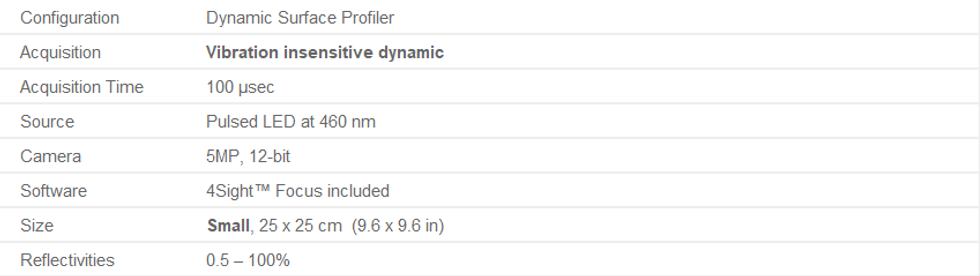

NanoCam HD Specs

nano cam.png

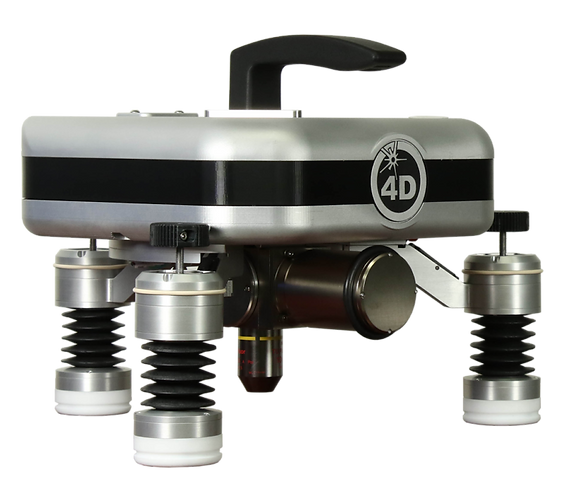

With unmatched flexibility, the light weight NanoCam HD can be easily positioned on large parts by hand, or mounted on a gantry or robotic arm to measure with sub-angstrom level repeatability and precision.

The NanoCam HD can measure finish:

  • anywhere on a large surface

  • inside production stations and polishing equipment

  • multiple parts arrayed on a table

  • directly on large optics and mirror segments.



Portability and on-machine capability significantly reduce the handling and transportation of large optics, increases throughput and dramatically reduces the risk of damage to expensive, critical optics.

The NanoCam HD replaces the NanoCam Sq.

The NanoCam HD surface roughness profiler utilizes Dynamic Interferometry®, with a high-speed optical sensor that measures thousands of times faster than traditional profilers. Because acquisition time is so short, the NanoCam HD can measure despite vibration, making it possible to mount the instrument on a gantry or robot end effector as well as inside of a polishing station to measure polishing quality.

Applications for NanoCam HD optical profilers include surface roughness of small and large coated/uncoated optics, on-machine surface roughness metrology, and process control for polishing operations, including measuring superpolish.


New autofocus capability allows for faster, more consistent measurements requiring fewer manual adjustments. Measure parts with reflectivity from 0.5% to 100% without changing reference optics. Single cable, power-over-ethernet operation can be combined with high speed innovative software for data acquisition and analysis in a laptop environment for added portability.

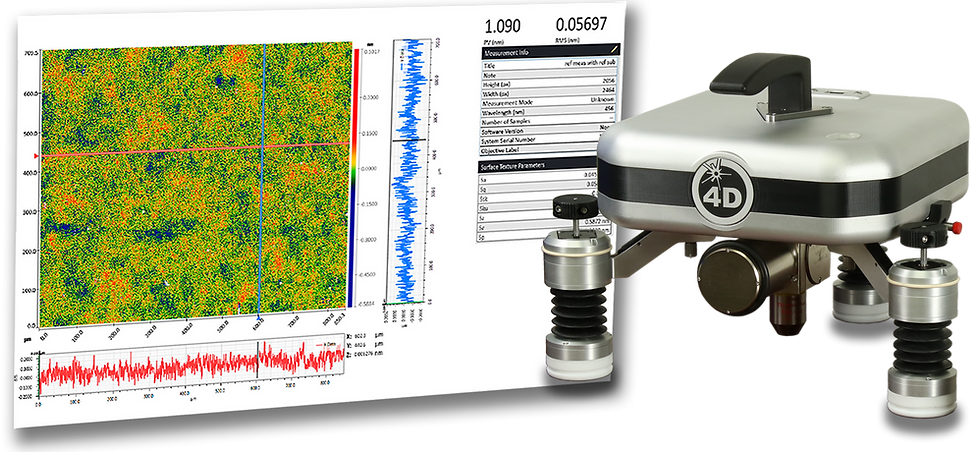

NanoCam HD Dynamic Optical Profilers include 4Sight Focus advanced analysis software. Industry-leading 4Sight Focus software reports ISO 25178 surface roughness parameters (S parameters) and provides extensive 2D and 3D analysis options, data filtering, masking and import/export functions.

Optics and astronomy

4D Technology interferometers have been instrumental in the development and testing of the most innovative ground- and spaced-based telescopes.

Learn how 4D has paved the way for discoveries about our world, and worlds beyond ours as well.

Highlighted Features

Compact and Lightweight

Versatile

Vibration Immune

Automation Ready

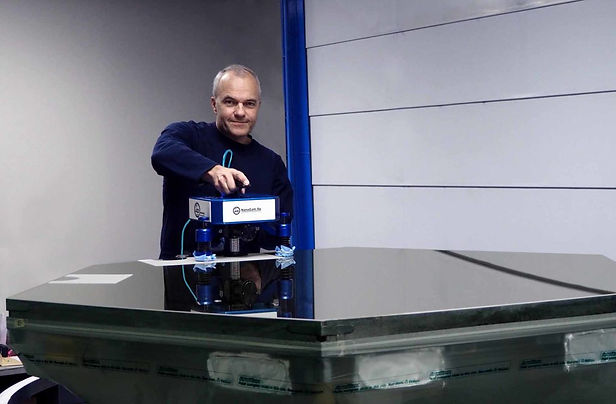

Measure roughness anywhere on large optics, mirror segments or small optics

Multiple mounting options and objectives for excellent flexibility and portability. Measure surfaces with reflectivity from 0.5% to 100%.

Acquisition speeds as fast as 100 microseconds make the NanoCam HD immune to vibration, so it can measure on robots, on gantries or in polishing stations.

Quickly integrates to popular collaborative robots for repeatable measurement inside a large volume, across a large plane or sphere, on large, complex shapes—even upside down.


DATA
ANALYSIS
SOFTWARE


Introducing 4Sight Focus

The all-new 4Sight Focus analysis software—included with all 4D interferometers and optical profilers—provides blazing fast acquisition, rich visuals, and a wealth of analysis features.

  • Fast acquisition and analysis

  • Clean, configurable interface

  • Simple to learn

  • Deep analysis capabilities

  • Easy data output

  • Smart integration and automation.


Roughness and Finish

View our application page on surface roughness measurement.

Measuring Segmented Mirrors

Read about measuring segmented mirrors on  our application page.
