AccuFiz Large Aperture Accessories

Compact, high performance Fizeau interferometers for shop-wide optics measurement at visible wavelengths.

Take advantage of the high wavefront quality and reliability of a standard AccuFiz to measure large flats and large-diameter curved surfaces—and small to mid-sized optics as well.

Measure Large AND Small Optics with One Instrument

AccuFiz Large Aperture Converters

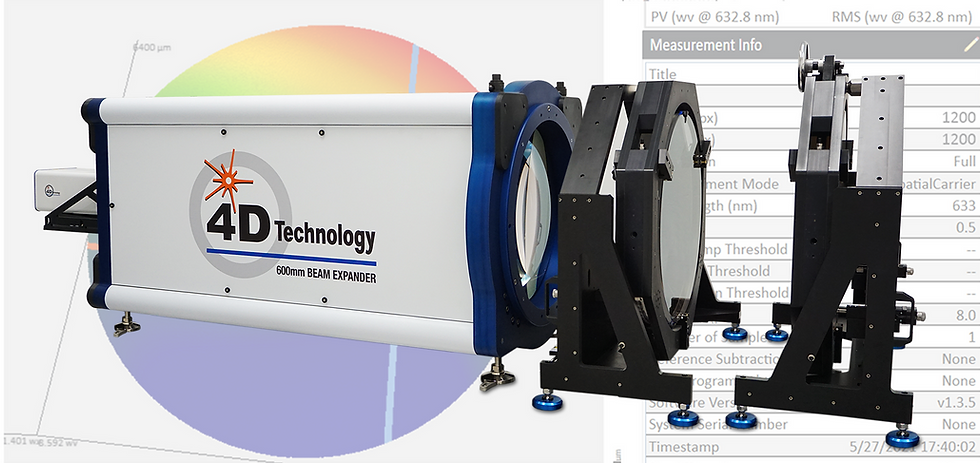

4D compact, high performance aperture converters produce collimated test beams of up to 600 mm diameter. Kinematic mounting makes it possible to quickly remove the AccuFiz for stand-alone operation, measuring a wide range of flat and focal optics throughout the shop. Then, return the instrument to the aperture converter to measure larger optics, with no need for re-alignment. The system can be used in horizontal or look-down configurations to maximize flexibility.

Reliable, Repeatable Optics Mounts

4D mounts provide highly repeatable tip and tilt of the test and/or reference optics. The mounts accept either sling-mounted flats, which are set in removable handling cells that provide precision, 360-degree rotation, or potted flats which can be rotated in 60 degree increments.

The 4D phase-shifting tip/tilt mount includes a piezo-actuated phase shifter for shifting the reference temporal measurements when an aperture converter is employed.

A range of transmission and return flats are available, with λ/10 or λ/20 wavefront quality.

Everything Included

A large aperture AccuFiz interferometer system includes:

AccuFiz 100 mm interferometer
Kinematic aperture converter
Motorized tip/tilt mounts for transmission and return optics
Piezo-controlled mount for shifting the reference for temporal measurements
Visible alignment laser system
Complete computer system
Connecting cables and power supplies.

Considerations in designing very large aperture interferometers

Learn how modern materials, design methods, and software can reduce complexity, improve precision and repeatability, and greatly enhance the usability of large-aperture Fizeau interferometers.

DATA
ANALYSIS
SOFTWARE

Introducing 4Sight Focus

The all-new 4Sight Focus analysis software—included with all 4D interferometers and optical profilers—provides blazing fast acquisition, rich visuals, and a wealth of analysis features.

Fast acquisition and analysis
Clean, configurable interface
Simple to learn
Deep analysis capabilities
Easy data output
Smart integration and automation.

Fizeaus and optical production

AccuFiz Fizeaus are well suited to optics manufacturing.

Large optics, both flats and spheres
Qualify shape and mid-spatial frequencies
Measure flats, spheres, cubes and mirrors
Wavefront transmission quality measurements
Fast and precise
Use in Aerospace, Semiconductor and Optics industries
